TTC450 Pro Highlights
Precision, Power, and Durability
Explore Accessories for the TTC450 Pro
Enhance Performance and Versatility
Technical specifications
| Parameters | Specifications and Features |
|---|---|
| Name | CNC Woodworking Engraving Machine |
| Model | TTC450 Pro |
| color | Red and Black |
| Frame structure | Sheet Metal + Aluminum Profile + Injection Molding + Stainless Steel |
| Product size | 742mmX689mm X 413mm |
| Working range | 460mmX460mmX80mm(18.1in*18.1in*3.14in) |
| Supported tool diameter | 0.5mm to 7mm(ER11 chuck) |
| Compatible engraving materials | Plywood/MDF/Solid Wood/Acrylic/Carbon Brazing/Aluminum/Copper/Stainless Steel |
| Net weight | 15.45KG |
| Gross weight | 20.6KG |
| Packing size | 760X740x218mm |
| Power supply mode | 24V3A Power Adapter |
| Switch power supply parameters | INPUT:100AC-240AC 50GHZ OUTPUT:DC24V/3A |
| Touch screen | 3.5-inch IPS capacitive touch color screen (480*320 resolution) |
| Firmware type | GRBL open source, supports both CNC and laser (no firmware required) |
| Support | TF storage card | USB port | Wifi-2.4G Hz |
| Not supported | Wifi-5G Hz | Bluetooth | Ethernet | USB flash drive |
| Engraving accuracy | 100±0.05mm |
| Maximum engraving speed | 800mm/min |
| Maximum acceleration | 1000mm/s² |
| Spindle motor | 775 brushed motor (standard) |
| Spindle speed | Depending on the installation, the spindle speed range is 8000-30000RPM |
| Tool size | According to ER11 collet inner hole size supports 0.5-6MM diameter tool |
| Engraving layer height | Non-metal 0.1mm-20mm Metal 0.1mm-0.2mm |
| Programming software | Artcam, Fusion360, EASEL , Carveco Maker, etc. |
| Support system | MacOS\Windows\Linux |
| Software language | Chinese\English\Spanish\German\French\Russian\Portuguese\Italian\Japanese\Korean\Turkish |
| Program support format | .nci\Gcode |
| Safety certification | CE-EMC/CE-LVD/CE-MD/CE-RED/ROHS/FCC-Sdoc/FCC-ID |
| Optimal engraving environment temperature | 0°-40° |
Unleash Creativity with the TTC450 Pro
Product Comparison

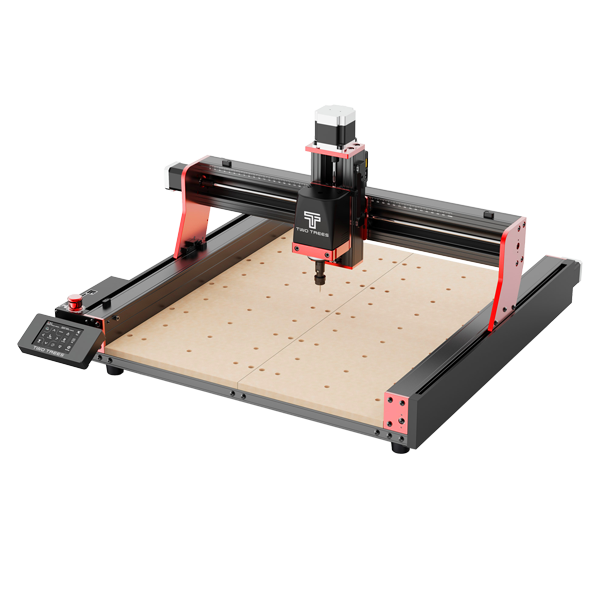

TTC450 Pro
From
9.253,00 Kč

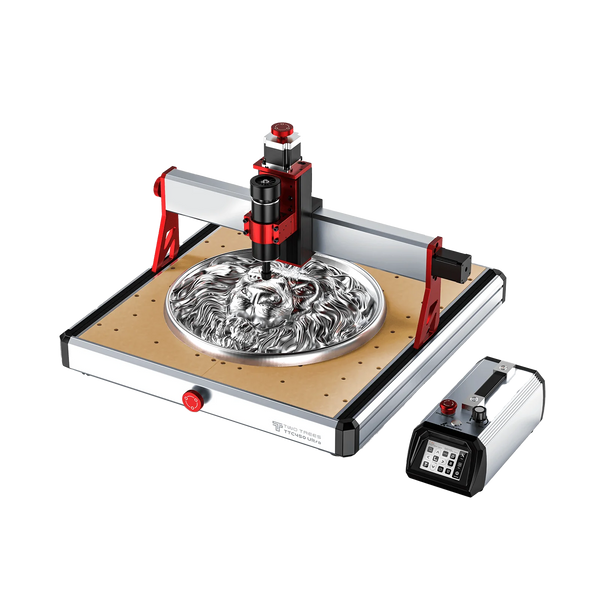

TTC450 Ultra
From
15.577,00 Kč
TTC6050
From
31.595,00 Kč
Overall Power
Engraving Area
Engraving Speed
Spindle Speed
Transmission Screw Models
T8 4mm Screw
T8 4mm Screw + 12H Linear Rail
Ball Screws + Linear Guides
Sensor
Screen display
Control box
Laser Compatible
TTC450 Pro Bundle
Twotrees TTC450 PRO CNC Router Machine + Vacuum Cleaner M1
11.340,00 Kč
|
Twotrees TTC450 PRO CNC Router Machine + 500W Spindle
11.972,00 Kč
|
Twotrees TTC450 PRO CNC Router Machine + 800W Spindle
12.183,00 Kč
|
Twotrees TTC450 PRO CNC Router Machine + Vacuum Cleaner M1 + End Mills
12.478,00 Kč
|

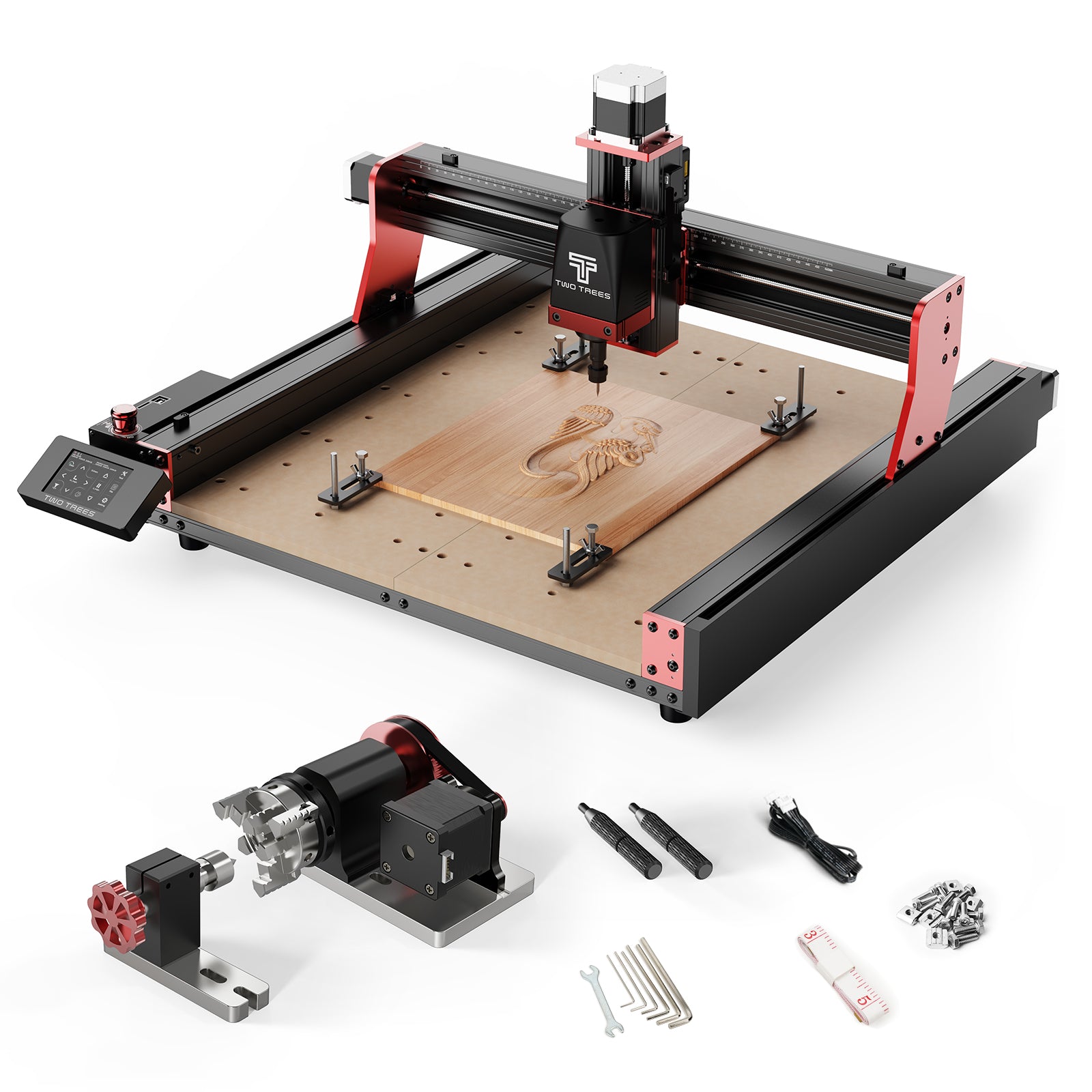

Twotrees TTC450 PRO CNC Router Machine + 4th Axis + End Mills
13.111,00 Kč
|
Twotrees TTC450 PRO CNC Router Machine + 500W Spindle + End Mills
13.111,00 Kč
|

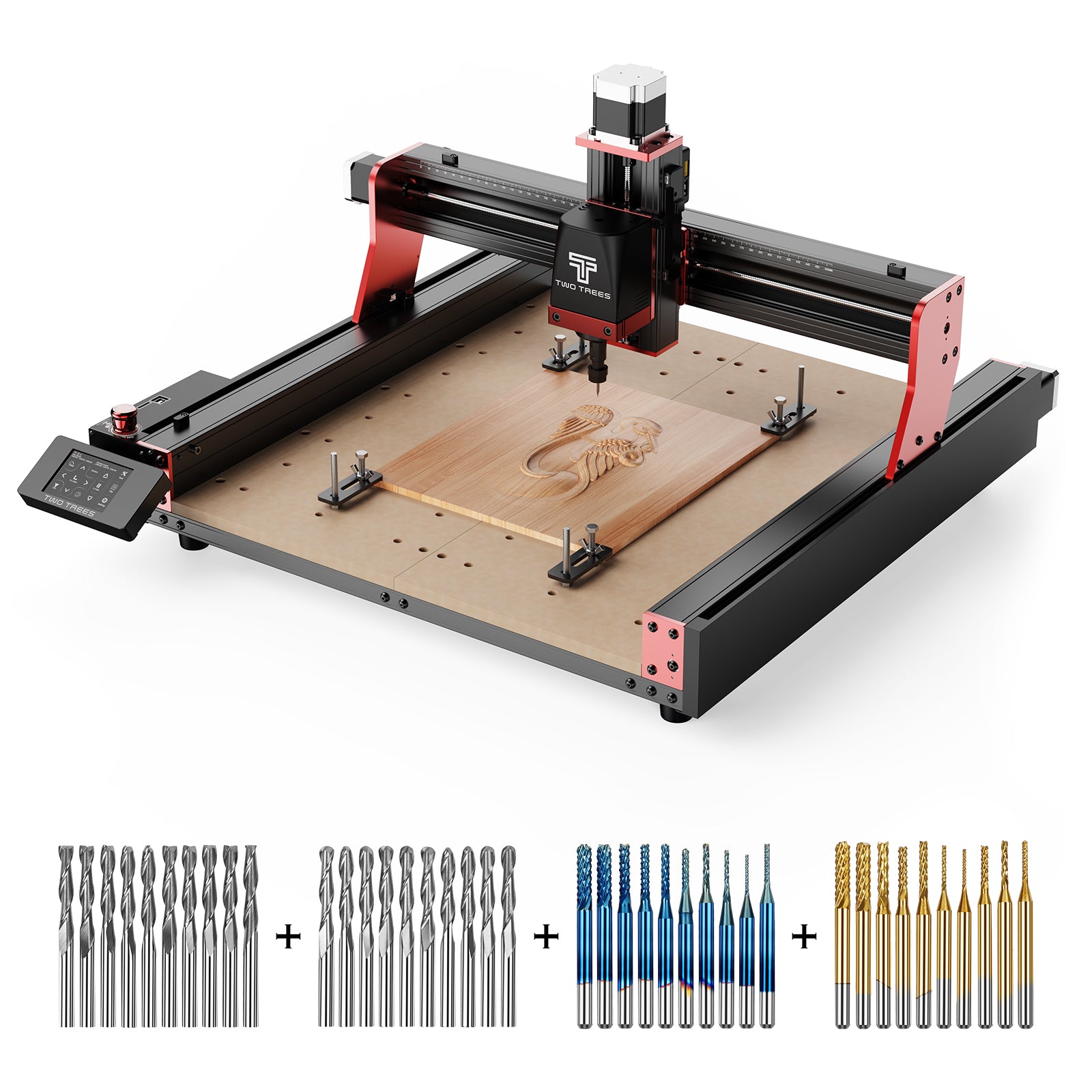

Twotrees TTC450 PRO CNC Router Machine + 800W Spindle + End Mills
