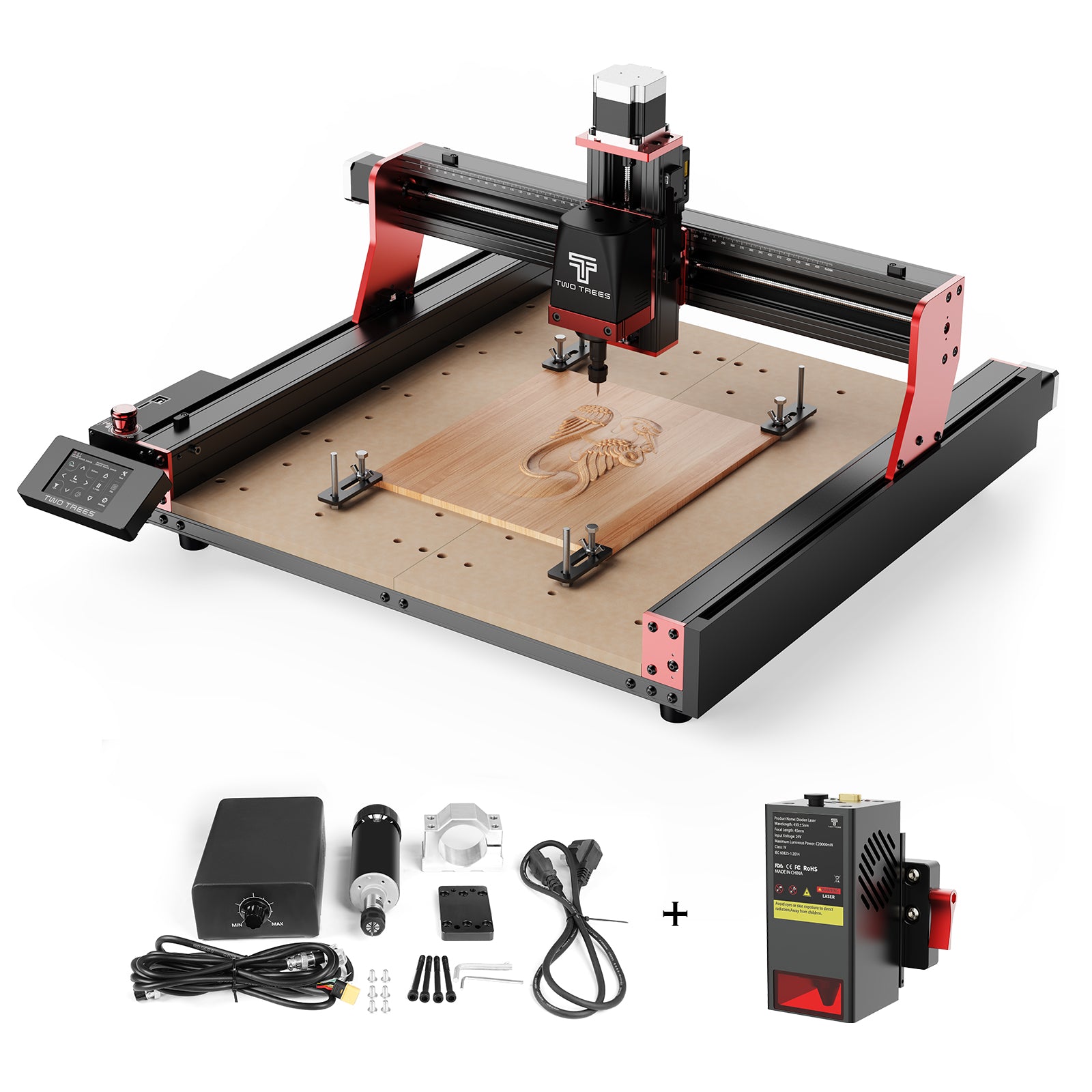

Twotrees TTC450 PRO CNC Router Machine + 500W Spindle + TC20 laser module
Shipping calculated at checkout.
TTC450 Pro CNC Router
An Excellent Choice for Users with Multiple Needs
Fast Engraving
Up to 800 mm/min
Spindle Speed
8000rpm
Flexible Setup
CNC & Laser Compatible
Key Features of TTC450 Pro
Precision, Power, and Durability
-
Large Working Area
460x460x80mm working space,creating more possibilities to meet most daily needs
-
High Precision
Newly designed milled edge gap-eliminating brass nut, which can improve accuracy to 0.05 mm
-
Powerful Expandability
Supports multiple engraving modes and is compatible with various upgrade modules to meet diverse functional requirements
Multiple Security Protections
Use with Confidence, Focus on Creation
Durable and Sturdy
Upgraded protection,stronger performance, and more durable
Multi-material Engraving
X-axis motor upgrade, providing more powerful drive
Powerful Expandability
Enhance performance and versatility with upgrade kits
(Upgrade kits must be purchased separately)
Swap Between Spindle and Laser
Lets you swap spindles to match your project's needs.Whether you’re carving fine details or cutting tough materials,enjoy smooth, precise results with the right spindle for every task.

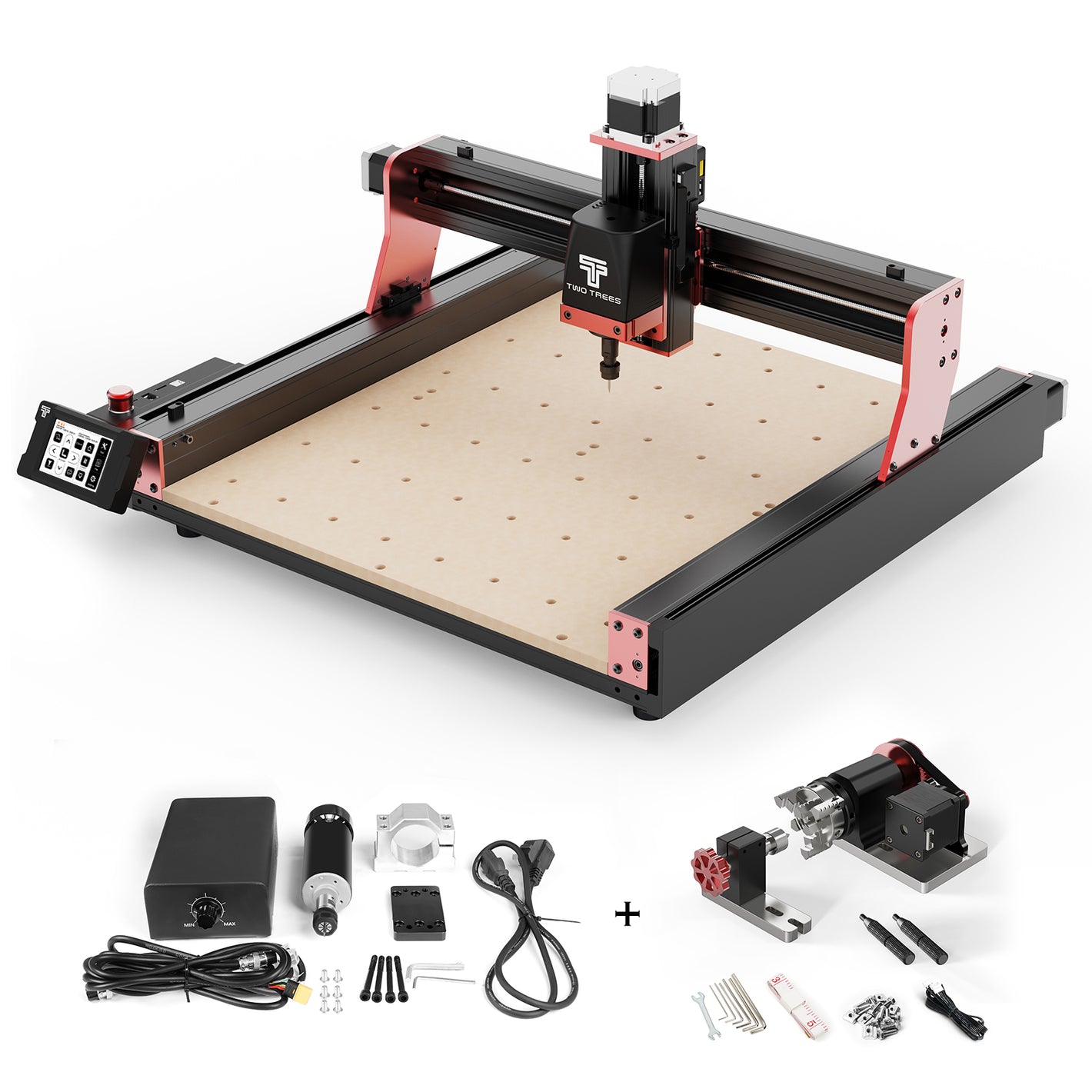

Cylindrical Engraving Solutions
Equipped with the fourth axis, CNC machines enable precise cylindrical engraving, allowing users to create unique artworks on various materials and enhancing design flexibility

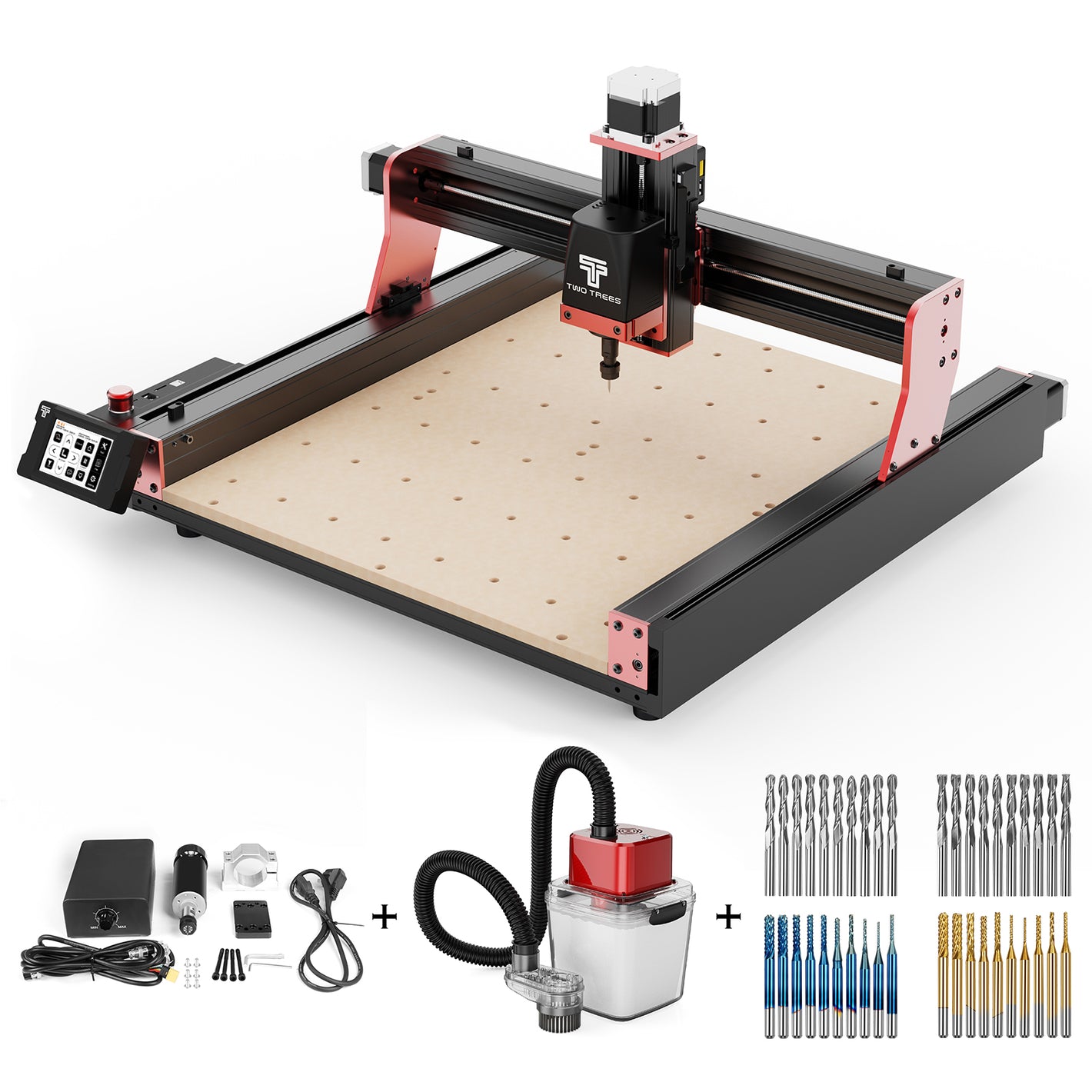

Dust Extraction System
The CNC Router with a dust extraction system effectively reduces dust during cutting and engraving, keeping the workspace clean.This enhances safety,extends equipment lifespan, and provides users with a better operating experience.
What are the reviews about TTC450 PRO？
Product Comparison
TTC450 Pro
TTC450 Ultra
TTC6050
TTC450 Pro TECHNICAL DATA
Built for precision. Specified in detail.
Every measurement, tolerance, and interface is engineered for repeatable accuracy — so creators can focus on making, not compensating.
Work Area
460 × 460 × 80 mm
Spindle Motor
775 Brushed Motor
Max Engraving Speed
800 mm/min
Max Acceleration
1,000 mm/s²
Tool Diameter
0.5–7 mm
Weight
15.45 kg
Main Body Material
Aluminum + Stainless Steel
Machine Dimensions
742 × 689 × 413 mm
Net Weight
15.45 kg
Gross Weight
20.6 kg
Packaging Dimensions
760 × 740 × 218 mm
Power Supply
24V 3A Power Adapter
Input Voltage
100–240V AC, 50/60Hz
Output Voltage
24V DC / 3A
Overall Power
72W
Touch Screen
3.5-inch IPS Capacitive Touchscreen (480 × 320 resolution)
Firmware
Open-source GRBL; supports CNC and laser
Programming Software
VCarve, Fusion360, EASEL, Carveco Maker, and more
Supported Systems
macOS, Windows, Linux
Software Languages
Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish
Supported Program Formats
.nc, .Gcode
Working Range
460 × 460 × 80 mm (18.1 × 18.1 × 3.14 in)
Supported Tool Diameter
0.5–7 mm (ER11 collet; depends on the collet’s inner bore)
Compatible Engraving Materials
Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel
Engraving Accuracy
100 ± 0.05 mm
Maximum Engraving Speed
800 mm/min
Maximum Acceleration
1,000 mm/s²
Spindle Motor
775 Brushed Motor
Spindle Speed
8,000–30,000 RPM (depending on installation)
Engraving Layer Height
Non-metals: 0.1–20 mm; Metals: 0.1–0.2 mm
Safety Certifications
CE-EMC, CE-LVD, CE-MD, CE-RED, ROHS, FCC-Sdoc, FCC-ID
Operating Temperature
0–40°C
