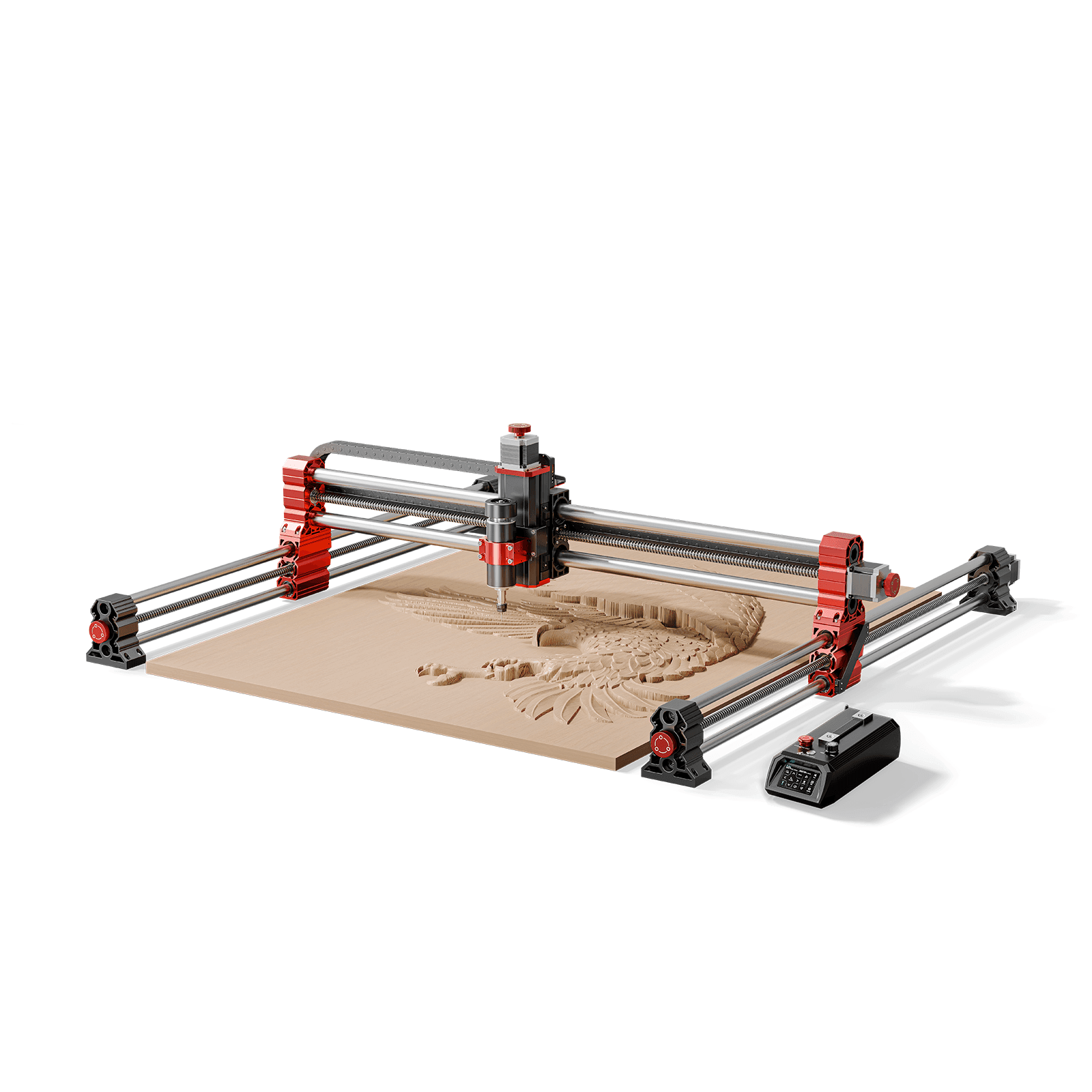

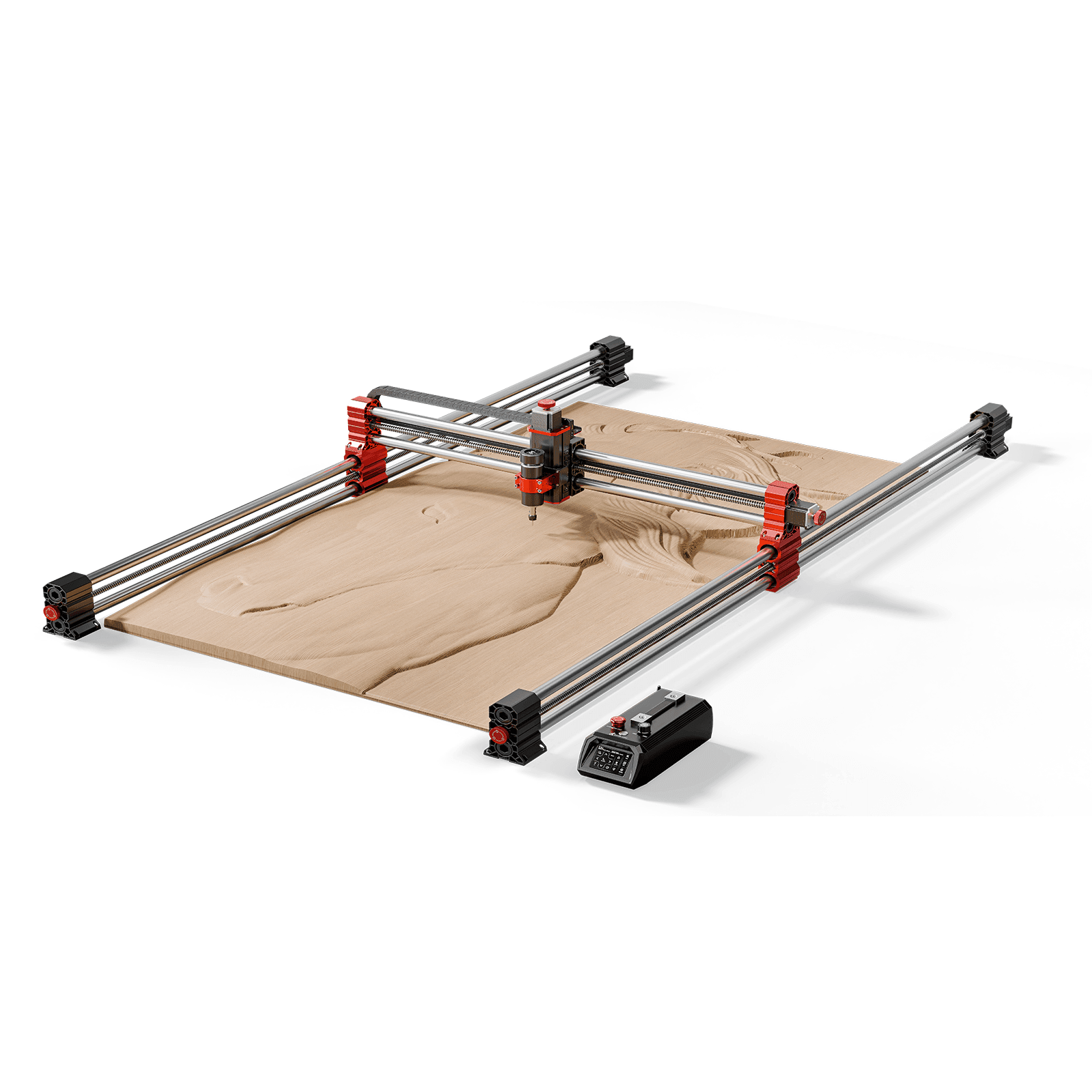

Twotrees TTC-H40 CNC Router Machine
Shipping calculated at checkout.
Advanced
500W Spindle
Premium
800W Router Machine + 500W Spindle
Ultra
20W Laser Module + 800W Router Machine + 500W Spindle
Features That Makes TTC-H40 Stand Out

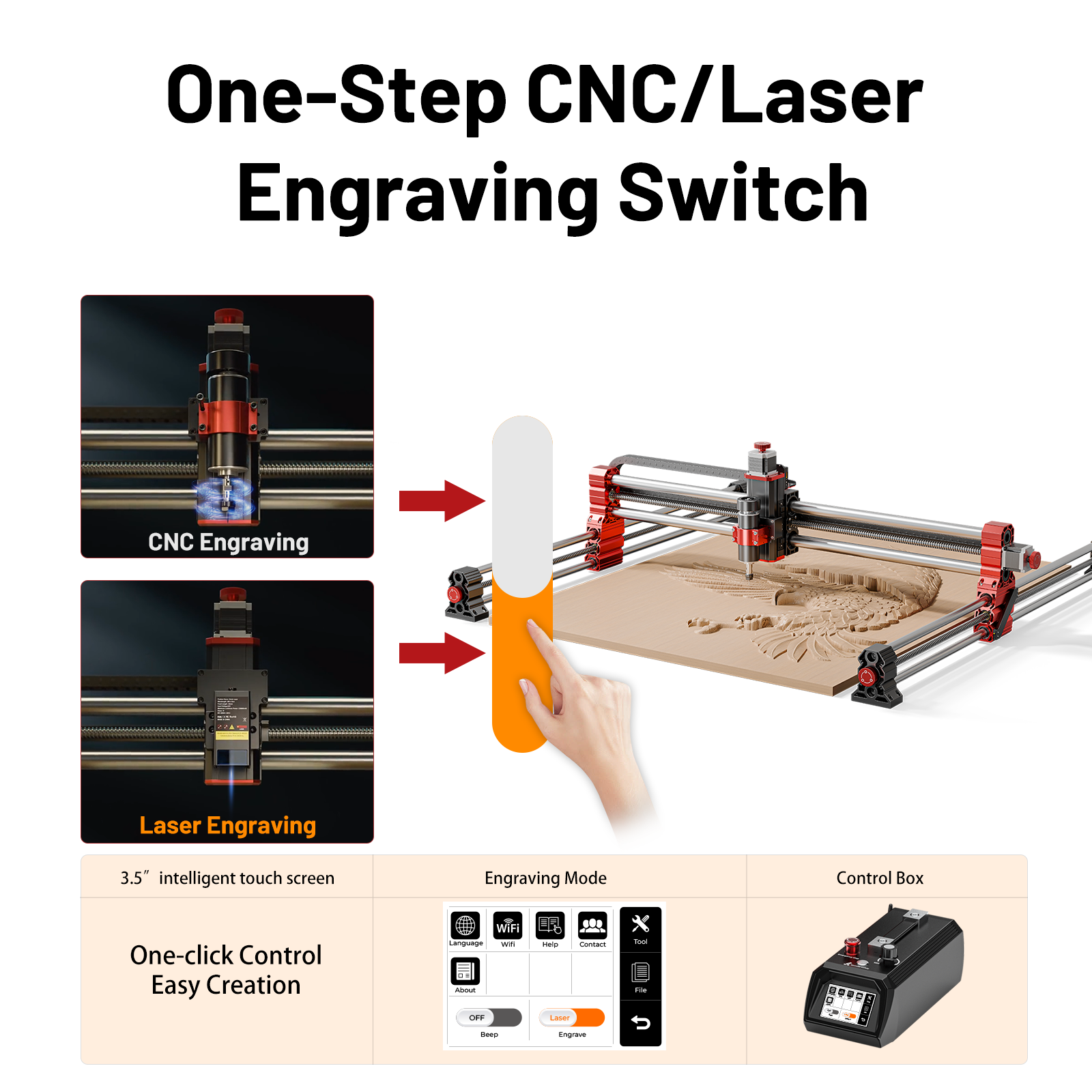

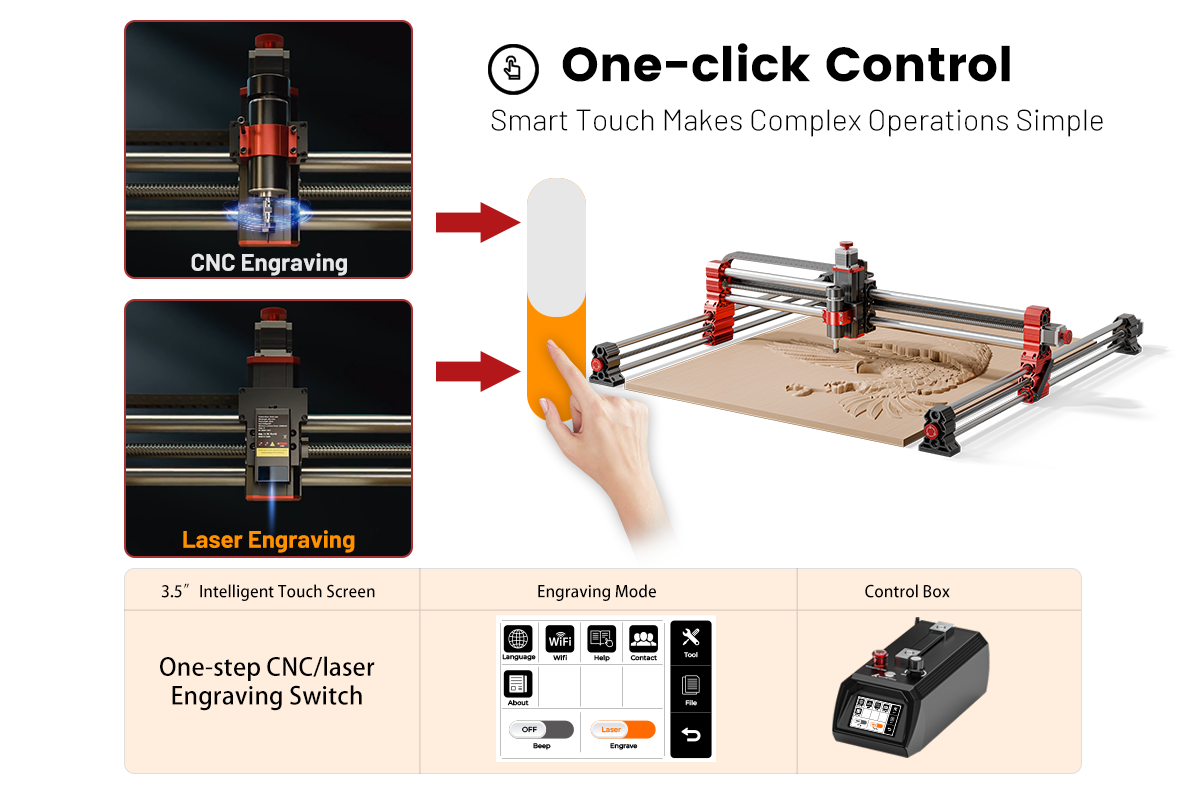

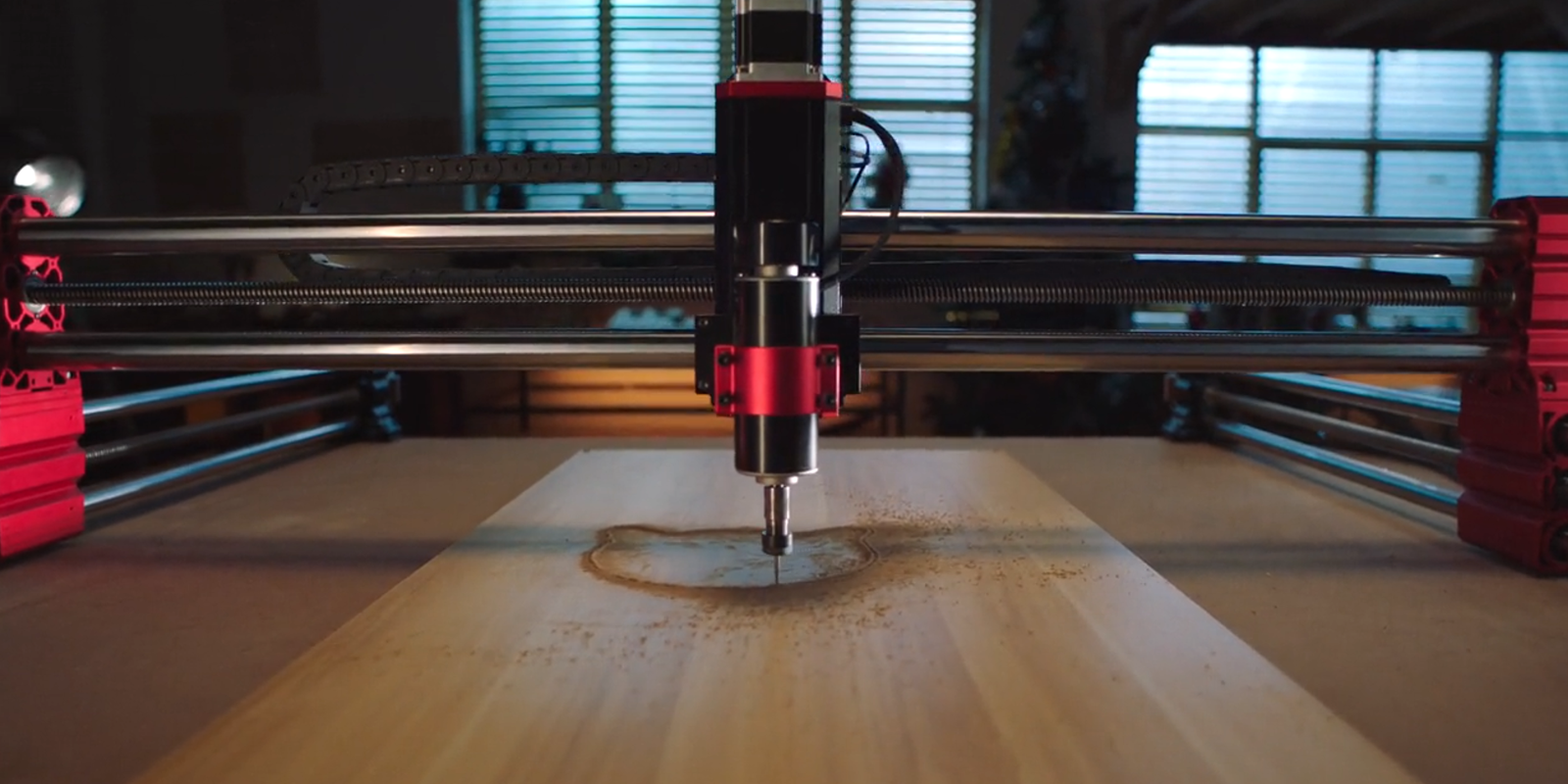

All-round Engraving, One-click Control
Multi-dimensional Advantages Make Engraving Simpler and More Efficient,Unlock a New Realm of Engraving,Create a Perfect Engraving Experience
Carving Upgrade,Practical and Artistic
Ideal for Creating Functional Pieces such as Custom Furniture and Decorative ltems such as Personalised Signage. lts Ability to Emboss, Add Depth and Texture

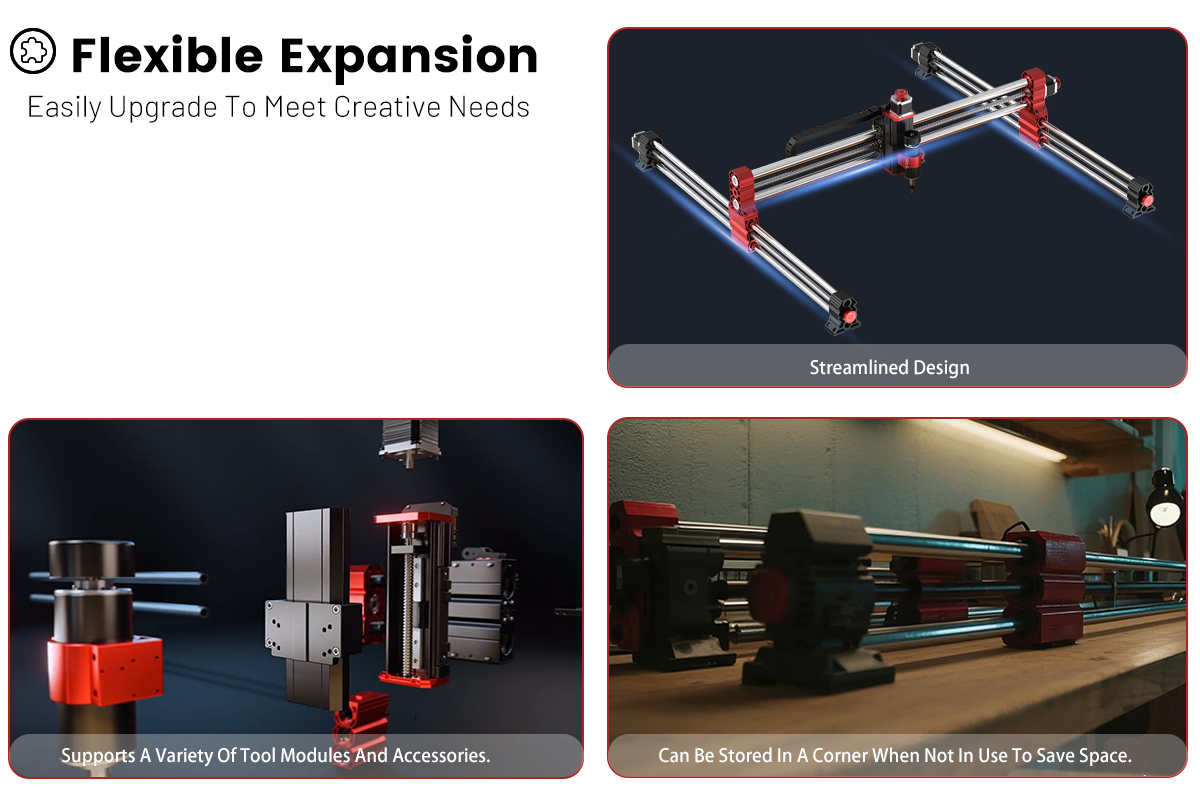

Powerful Scalability and Compatibility
Creativity Without Boundaries, Unlimited Carving
Unlock Your Creative Potential with TTC-H40 and Create Unique Home Art
Creative Choice Of Global Users
Real Feedback from Global Creators such as Creative Studio Users, DlY Enthusiasts.Small Business Owners, Educational Institution Users, and Professional Users
What are the reviews about TTC-H40？

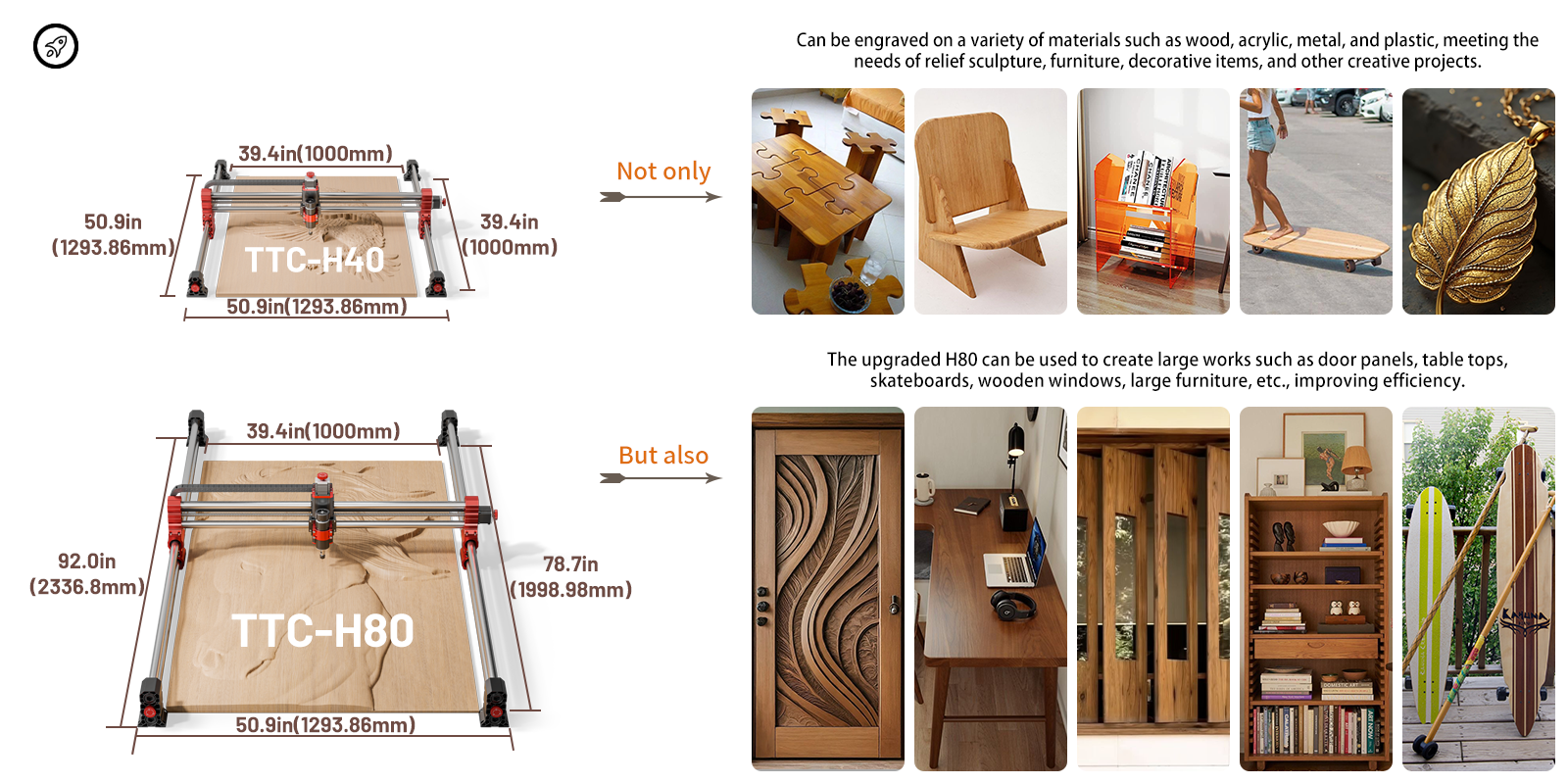

Product Comparison
TTC-H40
TTC6050
TTC-H40 TECHNICAL DATA
Built for precision. Specified in detail.
Every measurement, tolerance, and interface is engineered for repeatable accuracy — so creators can focus on making, not compensating.

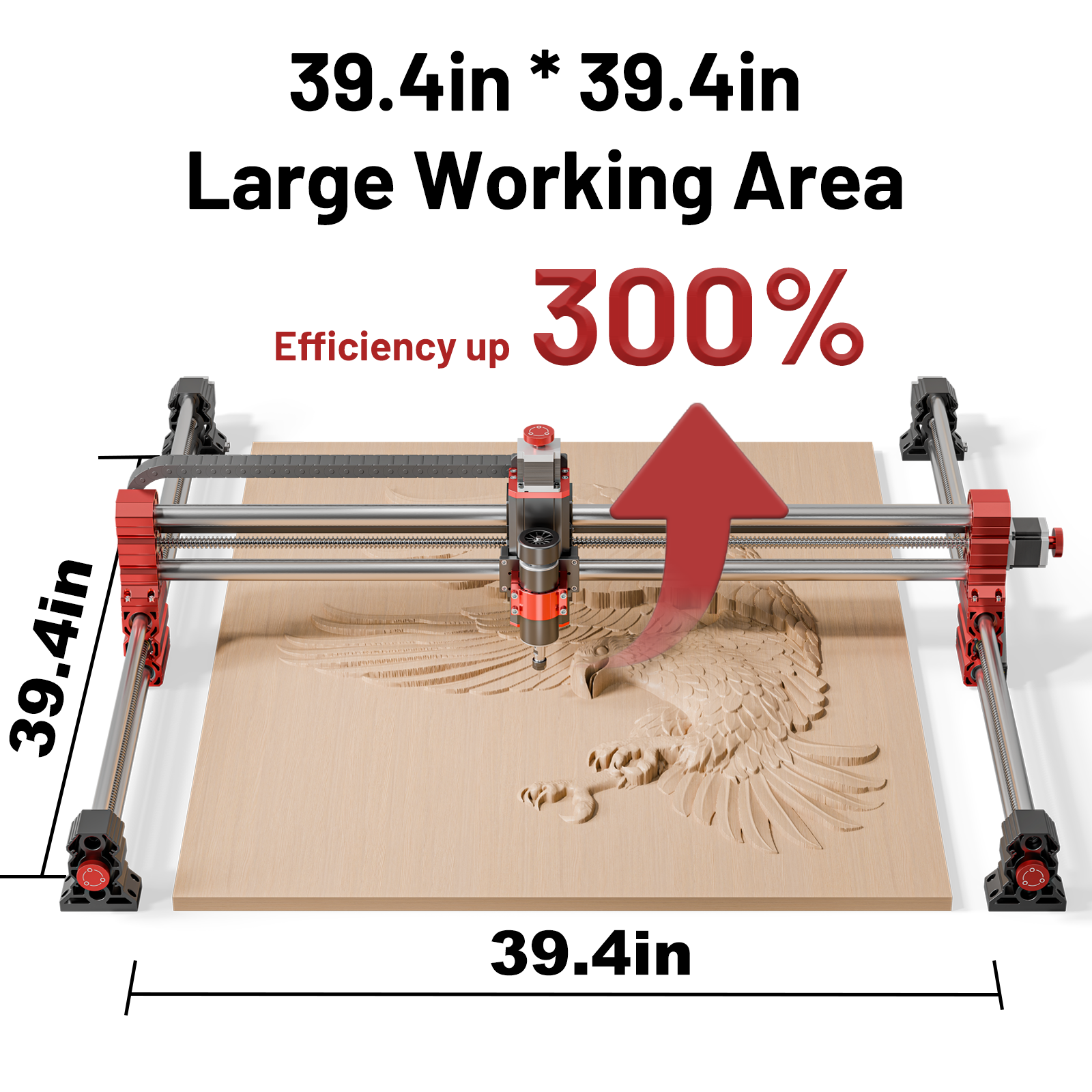

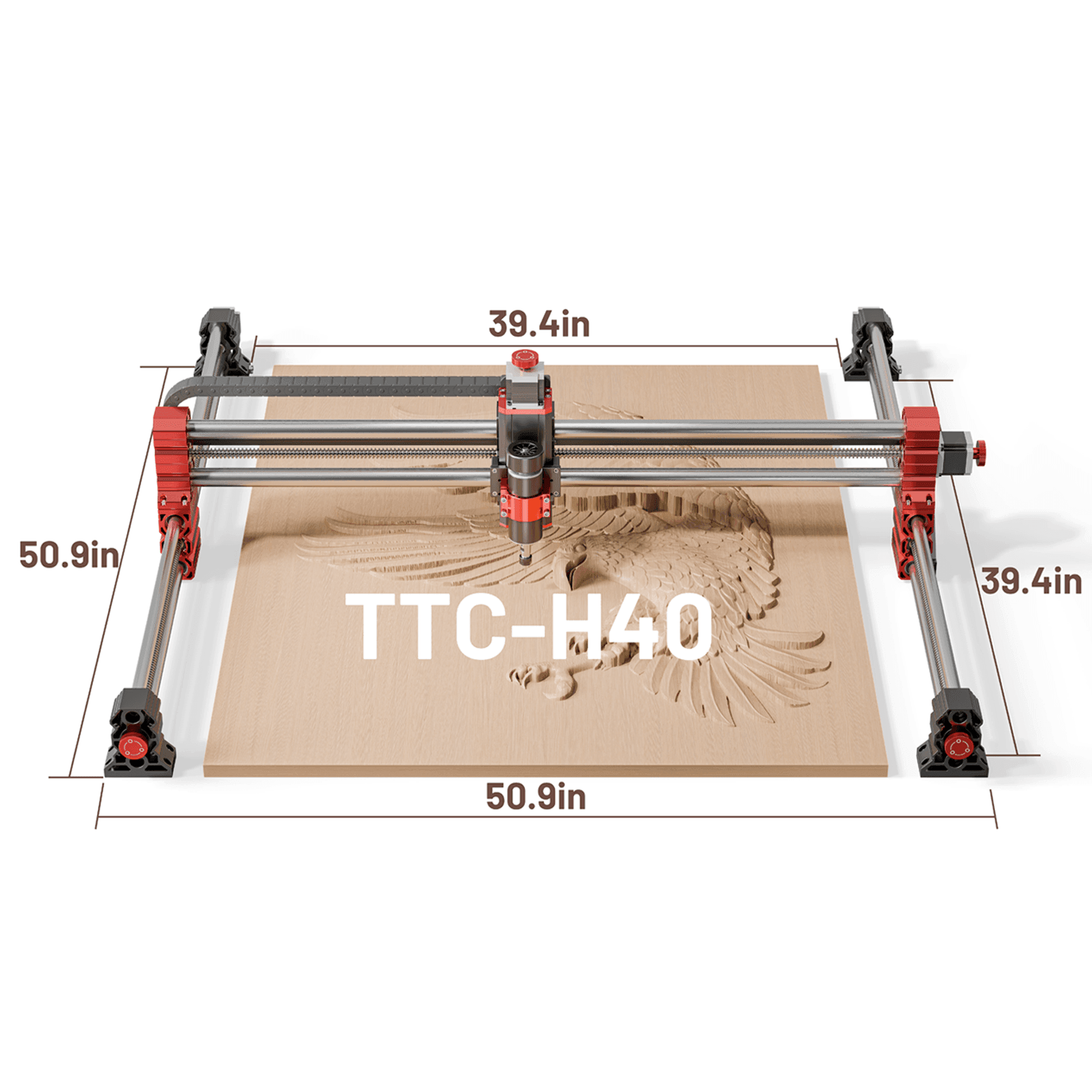

Work Area
1,000 × 1,000 × 100 mm
Spindle
500W Standard
Max Engraving Speed
1,800 mm/min
Engraving Accuracy
100 + 0.05 mm
Supported Tool Diameter
0.5–7 mm
Weight
38.3 kg
Body Material
Aluminum Alloy
Machine Dimensions
1,292.5 × 1,290.5 × 404.5 mm
Control Box Size
300 × 137 × 131 mm
Net Weight
38.3 kg
Spindle Module
500W Standard; optional 800W / 2,000W / 3,000W AC Trimmer; BLDC4475 Brushless Motor
Power Supply
216W Dual-Channel Switching Power Supply
Overall Power
150W
Input Voltage
100–240V AC, 50Hz
Output Voltage
OUT1: 24V DC / 4A; OUT2: 0–100V DC
Safety Certifications
CE-EMC, CE-LVD, CE-MD, CE-RED, ROHS, FCC-Sdoc, FCC-ID
Optimal Engraving Temperature
0–40°C
Working Range
1,000 × 1,000 × 100 mm (39.4 × 39.4 × 4 in)
Supported Tool Diameter
0.5–7 mm (ER11 Collet)
Compatible Engraving Materials
Plywood, MDF, Solid Wood, Acrylic, Carbon Fiber, Aluminum, Copper, Stainless Steel
Engraving Accuracy
100 + 0.05 mm
Maximum Engraving Speed
1,800 mm/min
Maximum Acceleration
500 mm/s²
Spindle Speed
8,000–30,000 RPM (depending on installation)
Engraving Layer Height
Non-metals: 0.1–20 mm; Metals: 0.1–0.2 mm
Engraving Method
USB Connection, TF Card

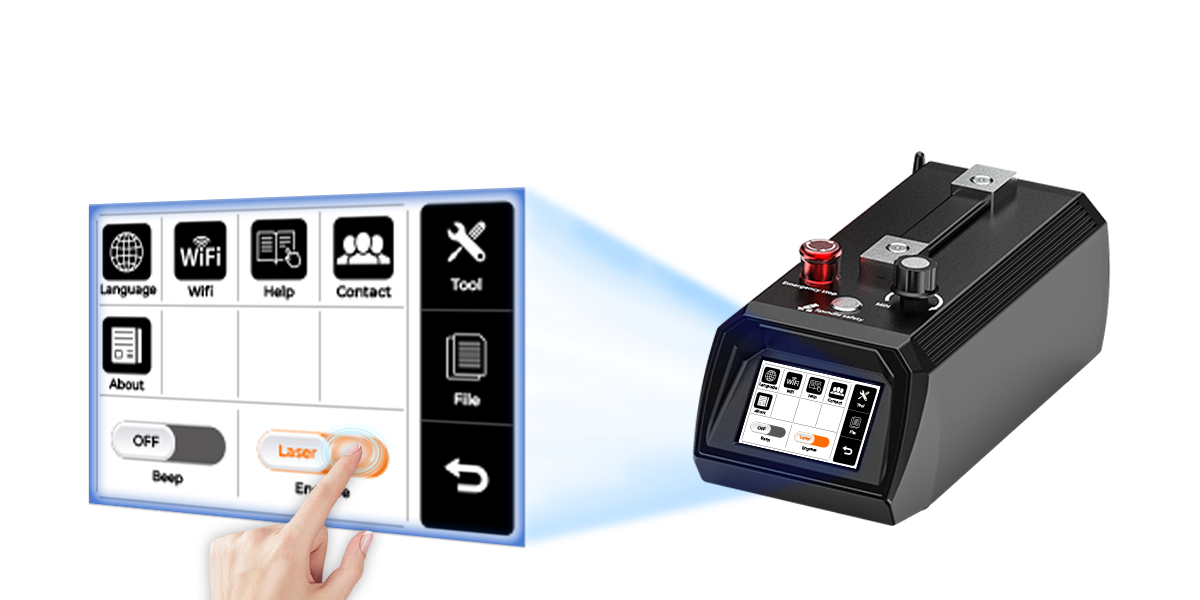

Touch Screen
3.5-inch Resistive Touchscreen (480 × 320 resolution)
Firmware
Open-source GRBL; supports CNC and laser
Touchscreen Functions

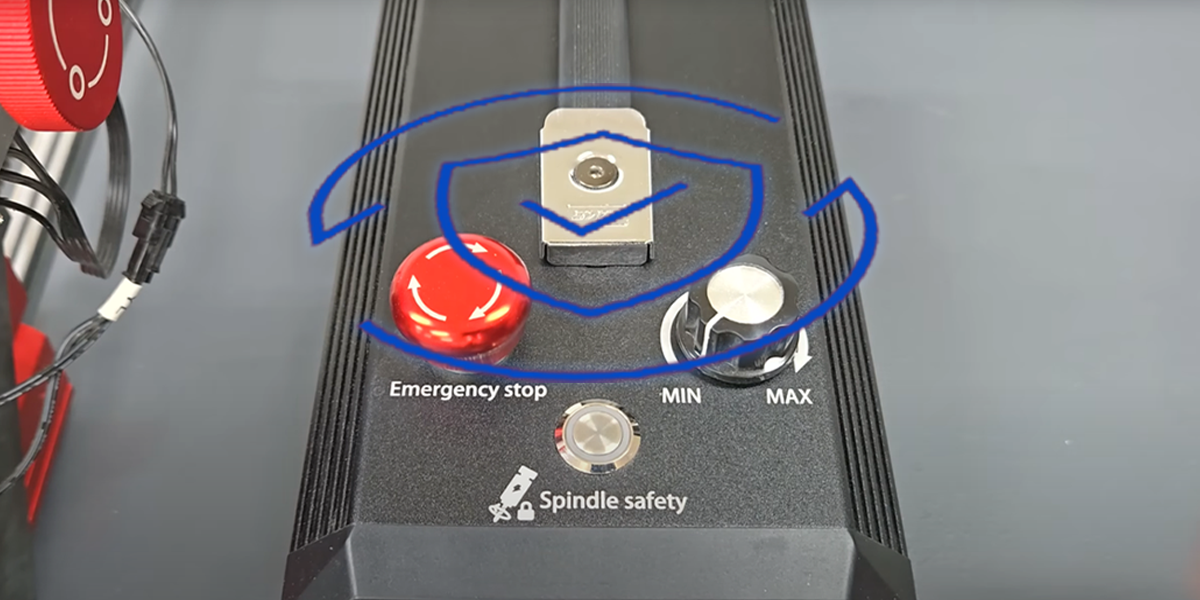

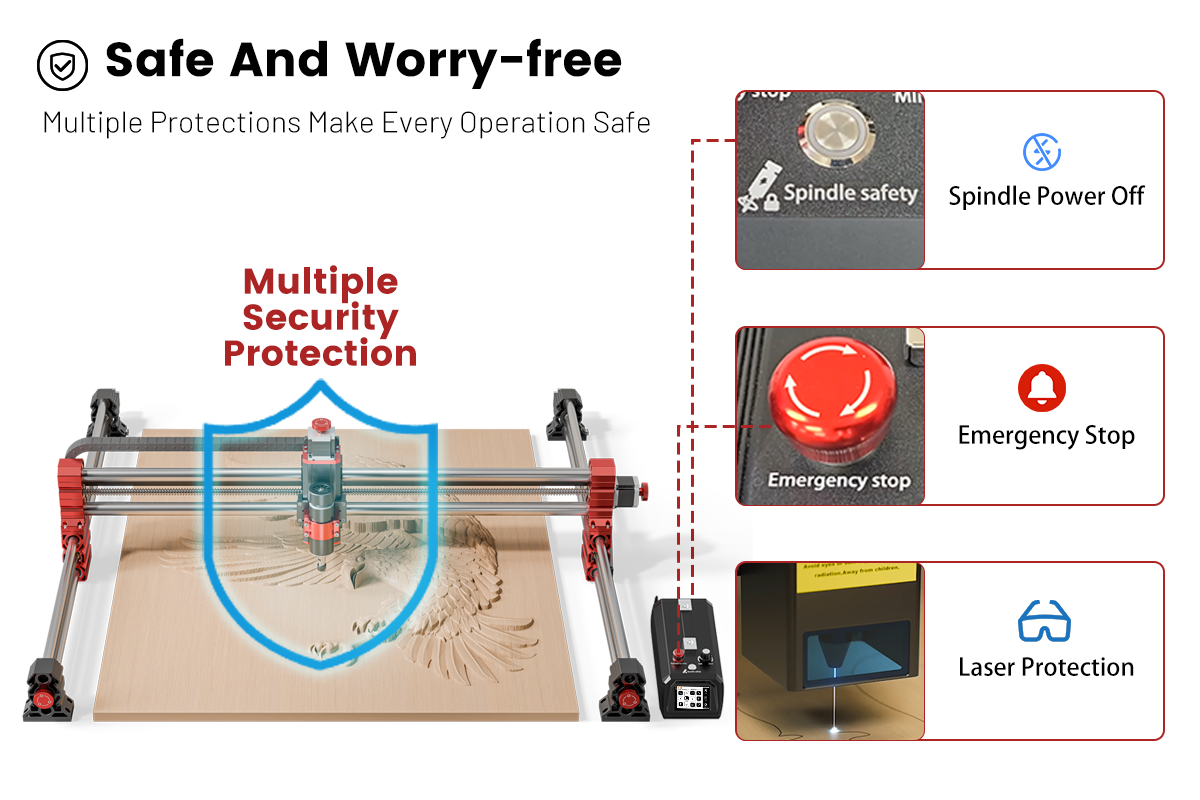

Motion Control, Emergency Stop, Speed Control, CNC/Laser Switching, Language Switching, Online Help

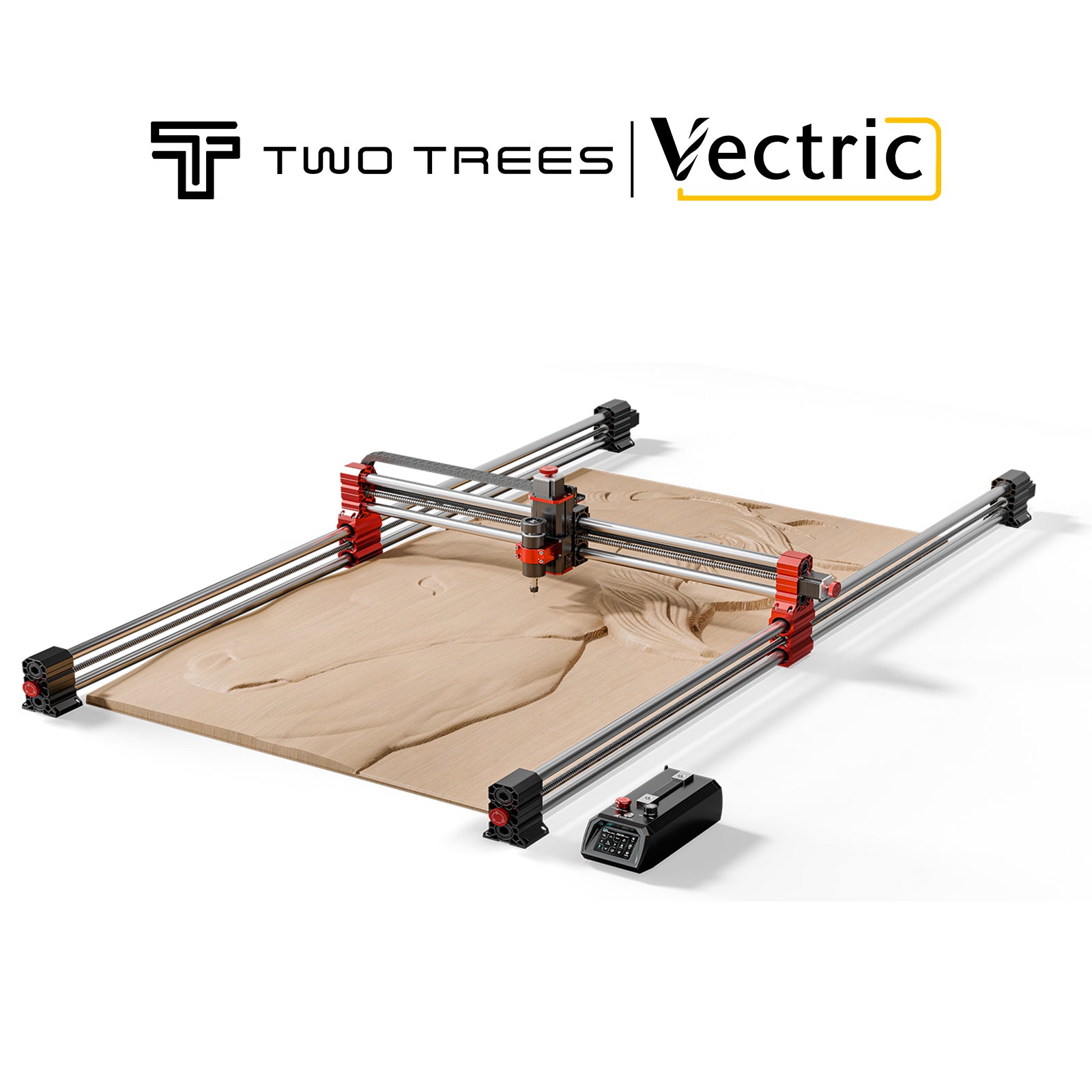

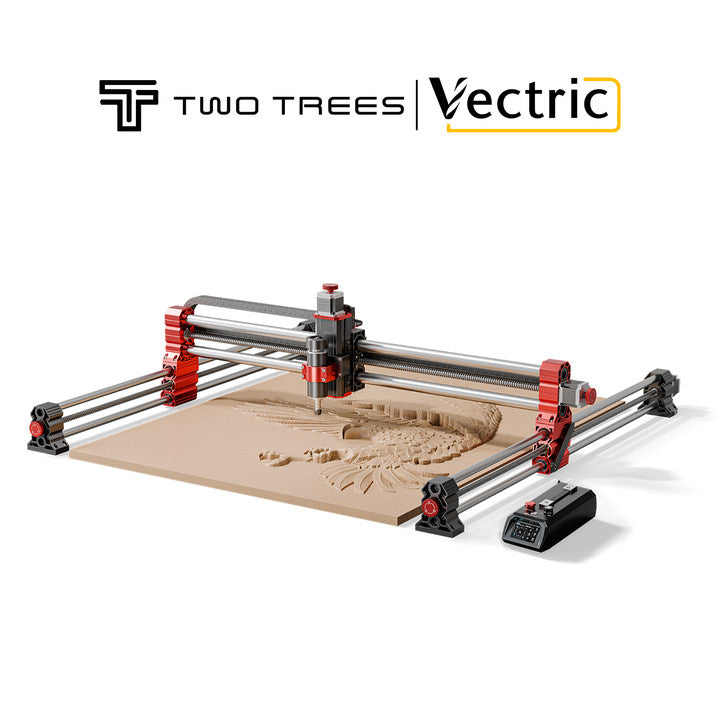

CAM Software
Vectric, Fusion360, EASEL, Carveco Maker
Supported Systems
macOS, Windows, Linux
Software Languages
Chinese, English, Spanish, German, French, Russian, Portuguese, Italian, Japanese, Korean, Turkish
